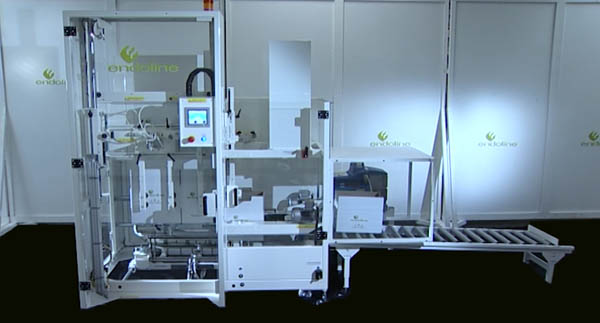

The Endoline Type 222 and Type 224 are high-performance fully automatic case erecting machines engineered for maximum efficiency and versatility. Designed to handle a wide variety of case sizes and styles, these machines incorporate unique engineering features that ensure reliability in high-demand production environments.
At the core of the 222 and 224 series is a unique dual opposing vacuum feature used to erect the cases. Unlike standard machines that may pull from a single side, this dual-action vacuum system ensures that every case is opened positively and squared accurately from both sides.
This feature is particularly effective for maintaining a consistent workflow, as it handles different cardboard grades and styles with precision, significantly reducing the likelihood of machine downtime or misfeeds.
Both models are designed with high quality in mind, ensuring they remain extremely simple to operate and maintain. This user-friendly design reduces the need for extensive operator training and ensures a low cost of ownership, providing an excellent return on investment for businesses looking to automate their end-of-line packaging.
The standard type 222/224 machines can handle cases between 200-600mm length, 200-500m width and 175-600mm height.
Up to 12 cases per minute as standard with a high speed option of up to 14 cases per minute.
This machine can be upgraded with Servo drives to increase the speed up to 16 cases per minute.
Up to 75mm wide as standard.
Mild steel with white powder-coated finish (RAL9010) or stainless steel as standard. Bespoke colour options available.
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Key Points
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
