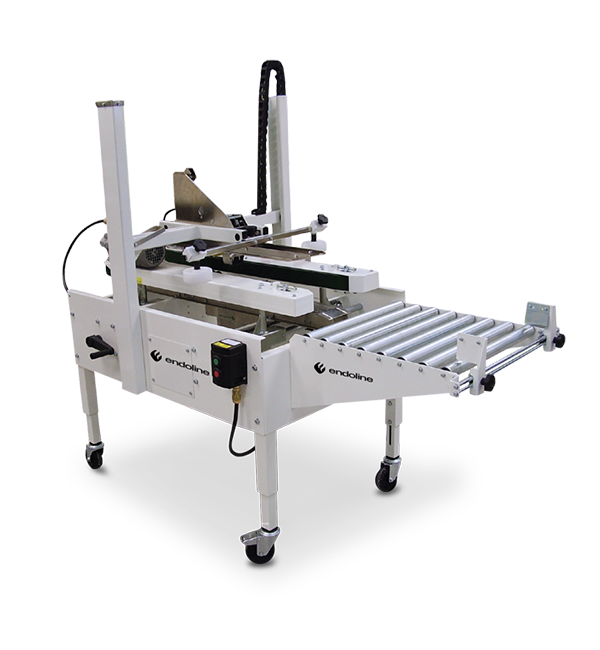

621/625 – Semi Automatic Pre-set Case Tapers

The Endoline type 621 / 625 case sealers are semi automatic pre-set machines that seal cases with self-adhesive tape . They are well-suited to single operator control, sealing consistent size cases. The type 621 case sealer is bottom seal only and can be used with a 100 series case erector to form a manual erecting and sealing system.

The 625 case sealers seals both top and bottom and can be used for long production runs of the same case size. Both these machines are very simple to operate and maintain.


 The type 621 case sealer can handle cases between 110-990mm length and 100-500mm width, with no top taping.

The type 625 case sealer can handle cases between 110-990mm length and 100-500mm and 110mm-510mm height.


50mm or 75mm.


Mild steel, powder coated white (RAL9010) or stainless steel.


Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

Key Factors

  • Compact Footprint

    With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.

  • Ease of operation

    These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.

  • Robust construction

    High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.

  • Low Cost Of Ownership

    The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
