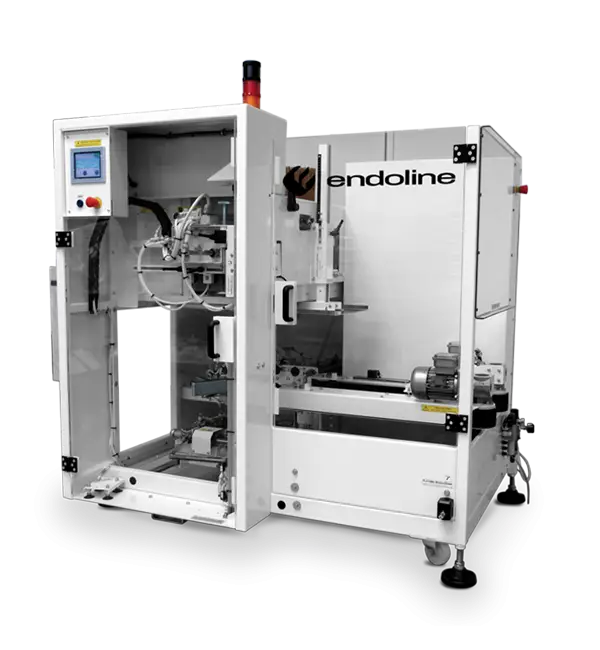

The 247/248 Fully Automatic High Speed Case Erector range is specifically engineered for high-volume production lines that require the rapid assembly of smaller case sizes. By utilising advanced servo drive technology, these machines offer a level of speed and precision that far exceeds standard pneumatic systems, making them a premier choice for e-commerce, pharmaceutical, and high-speed food packing sectors.
A primary feature of the 247/248 Fully Automatic High Speed Case Erector is the use of servo drives to manage the machine’s mechanical strokes. This allows for ultra-precise timing and smooth motion control, enabling the system to reach industry-leading speeds without compromising the structural integrity of the cases.
The high-quality construction of the 247/248 Fully Automatic High Speed Case Erector ensures that it remains simple to operate and maintain. This results in a low cost of ownership and a rapid return on investment, as the machine is built for the rigours of 24/7 industrial environments.
To maintain stability at high velocities, the 247/248 Fully Automatic High Speed Case Erector utilises Endoline’s unique dual opposing vacuum feature. This system grips the case blank from both sides simultaneously, ensuring a positive and perfectly square opening for every cycle.
By providing total control over the case during the forming process, the 247/248 Fully Automatic High Speed Case Erector eliminates common high-speed bottlenecks like misfeeds or jammed cardboard, even when handling lightweight materials.
The standard type 247 and type 248 case erecting machines can handle cases between 160-400mm length, 100-300mm width and 150-400mm height.
Up to 30 cases per minute.
Up to 50mm wide as standard.
Mild steel with white powder-coated finish (RAL9010) or stainless steel as standard. Bespoke colour options available.
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
While allowing the machine to reach higher speeds – up to 30 cases per minute – the servo drive system permits greater flexibility and control by allowing almost instant acceleration and deceleration of cases through the erecting process. In turn this system can save energy because the servo drives only use power when needed.
Key Points
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
The 247/248 range is fitted with servo drives to further increase the number of cases sealed per minute up to 30 cases per minute.
