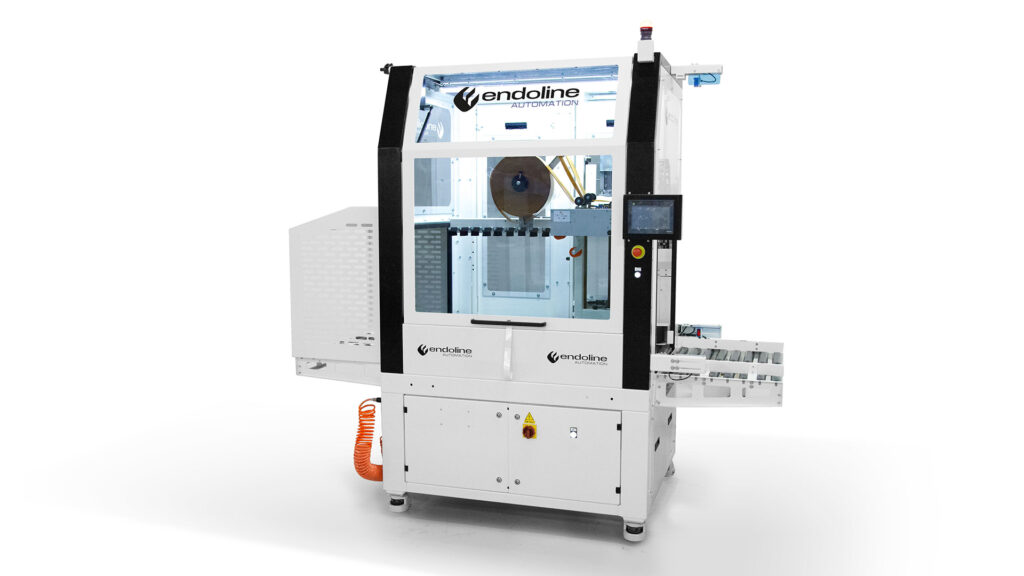

The 902 Water Activated Tape Case Sealer is a high-performance semi automatic random solution designed for businesses that prioritise both security and environmental responsibility. Unlike standard pressure-sensitive tape, this machine utilises Water Activated Tape (WAT) to create a permanent, molecular bond with the corrugated case.
This model is engineered to handle varied production flows, automatically adjusting its height and width settings to accommodate random case sizes in any sequence without manual intervention.
The heart of the 902 Water Activated Tape Case Sealer is its precision fluid management system. It features a 5-litre internal reservoir equipped with an integrated flow meter and a safety sensor. This system proactively notifies the operator when water levels are low, ensuring the sealing process is never compromised by dry tape.
Once a case enters the sealing zone, a 3-channel water system ensures uniform moisture application to the top and bottom taping heads. To guarantee a perfect finish, the 902 Water Activated Tape Case Sealer uses specialised output brushes that apply consistent pressure, driving the adhesive into the fibres of the box for an unmatchable seal.
Utilising the 902 Water Activated Tape Case Sealer offers significant advantages for high-value goods and e-commerce:
Tamper Evidence: Because the tape bonds to the box, it cannot be peeled off without leaving clear evidence of entry.
Structural Integrity: WAT adds strength to the case, making it ideal for heavier loads and long-distance transit.
100% Recyclable: WAT is generally more eco-friendly than plastic tapes, aiding in corporate sustainability goals.
The type 902 case sealing machines can handle cases between 250mm – 800m length, 150mm – 600mm width and 150mm – 600mm height.
Water activated tape (WAT) is used for strong, reliable and tamper evident seal.
12-14 cases per minute in normal format
7-8 cases in random format
Mild steel with white powder-coated finish (RAL9010) or stainless steel as standard. Bespoke colour options available.
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Key Points
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
This machine will adjust its settings to close and seal cases throughout the full case size range in any random sequence. This machine can operate on small and large cases at maximum speeds of 14 cases per minute in any random sequence.
