225/226 Case Erectors - Endoline Automation

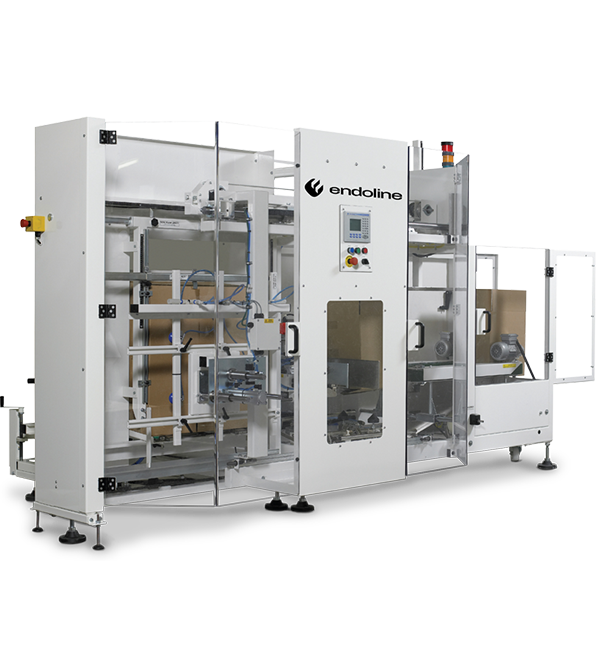

225/226 – Fully Automatic Case Erectors

The type 225 and type 226 case erectors are designed to handle medium to large sized cases in a wide variety of styles. They seal with either self-adhesive tape (225) or hot melt glue (226), they are extremely simple to use and have the added feature of a low level hopper for the ergonomic loading of heavy case blanks.

CASE DIMENSIONS

The standard type 225 and type 226 machines can handle cases between 200-700mm length, 200-500mm width and 175-750mm height.

SPEED

Up to 10 cases per minute.

TAPE SIZE

Up to 50mm wide as standard.

MACHINE FINISH

Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS

Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

Key Factors

Dual opposing vacuum opening

This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
Ease of operation

These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction

High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership

The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
