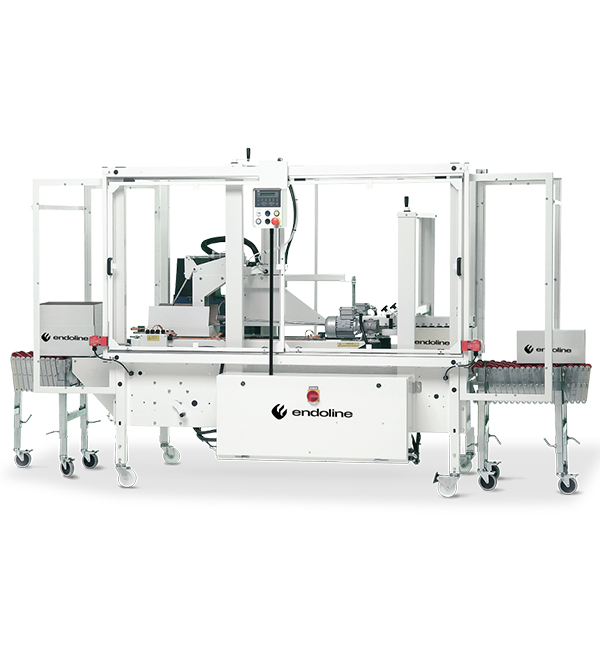

400 SERIES FULLY AUTOMATIC CASE GLUERS

The Endoline 400 series are fully automatic pre-set case sealers that seal cases with hot melt glue and do not need require an operator. It is well-suited to long production runs of the same case size and the range of machines offered include top gluing and top and bottom gluing. Endoline’s unique four column construction provides added stability and its robust chassis enables the machine to run 24 hours a day, 7 days a week with minimal down time.

CASE DIMENSIONS

The type 400 series case tapers can handle cases between 160-500mm length, 100-400mm width and 100-500mm height.

SPEED

Up to 30 cases per minute.

GLUE SYSTEMS

Endoline glue sealers use Nordson Pro-Blue glue systems as standard, offering high quality and efficency. Other glue systems are available on request.

MACHINE FINISH

Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS

Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

Key Factors

  • Compact Footprint

    With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.

  • Ease of operation

    These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.

  • Robust construction

    High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.

  • Low Cost Of Ownership

    The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.

Watch the video

*The video shown is for illustrative purposes only and may differ according to order specification.

Summary

PRICE
BUILD QUALITY
SPEED
FOOTPRINT
MODIFIABLE
