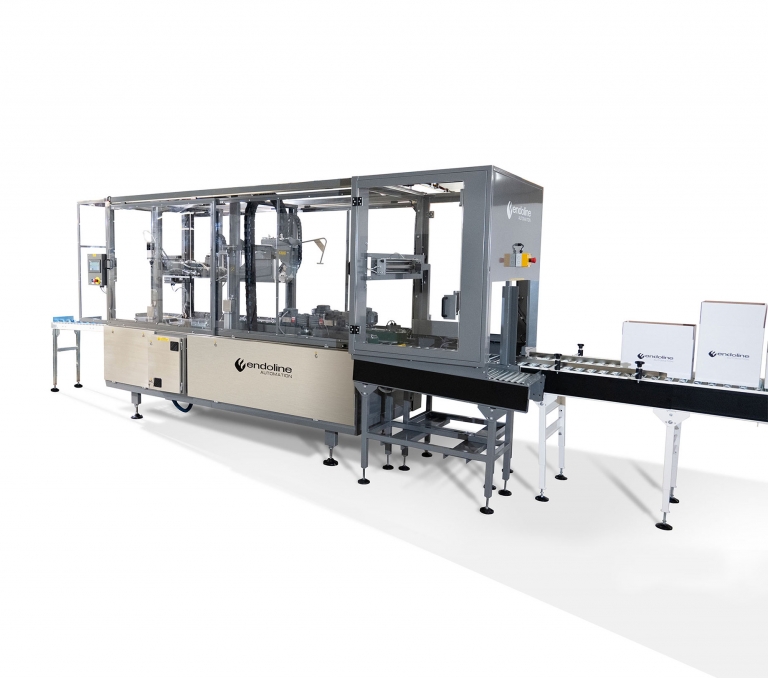

407 FULLY AUTOMATIC RANDOM CASE GLUER

The Endoline type 407 is a servo driven fully automatic random case gluer that closes and seals boxes at high speed with hot melt glue and does not require an operator. It can seal small and large cases and adjusts automatically to random sizes.

The type 407 offers a high speed solution using barcode scanning technology to recognise the cases prior to sealing and is very simple to operate and maintain. It has a specially designed unique four column construction to provide added stability and its robust chassis enables the machine to run 24 hours a day, 7 days a week with minimal down time.

CASE DIMENSIONS

The type 407 case sealing machines can handle cases between 300- 560mm length, 170-350mm width and 210-360mm height.

SPEED

16 cases per minute depending on case size.

GLUE SYSTEMS

Endoline glue sealers use Nordson Pro-Blue Flex glue systems as standard, offering high quality and efficiency. Other glue systems are available on request.

MACHINE FINISH

Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS

Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

Key Factors

  • Random Case Sealing

    This machine will automatically adjust its settings to close and seal 0201 cases throughout the full case size range in any random sequence. This machine can operate on small and large cases at maximum speeds of 16 cases per minute in any random sequence.

  • Robust construction

    High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.

  • Servo Drives

    While allowing the machine to reach higher speeds the servo drive system permits greater flexibility and control by allowing acceleration and deceleration of the moving heads and side drives through the closing and sealing process. In turn this system can save energy because the servo drives only use power when needed.

  • Low Cost Of Ownership

    The Endoline case sealer machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.

Watch the video

*The video shown is for illustrative purposes only and may differ according to order specification.
