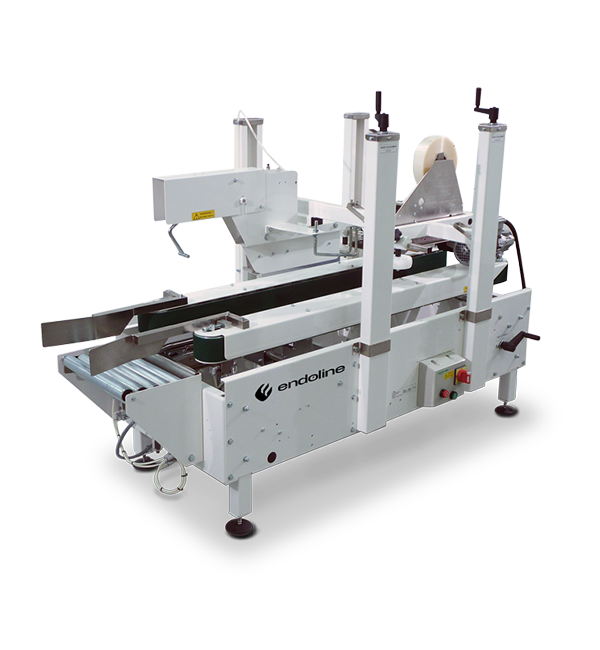

602/607 – Fully Automatic Pre-set Case Taper

The Endoline type 602 and 607 are fully automatic pre-set case sealers that seals cases with self-adhesive tape and does not need an operator. It is well-suited to long runs of the same case size.
The type 602 and 607 offer high speed solutions and are both very simple to operate and maintain. Endoline’s unique four column construction provides added stability and its robust chassis enables the machine to run 24 hours a day, 7 days a week with minimal down time. The tape units are instantly removable and interchangeable.

CASE DIMENSIONS

The type 602 case taper can handle cases between 150-400mm length, 100-340mm width and 110-370mm height.

The type 607 case taper can handle cases between 150-600mm length, 110-500mm width and 110-560mm height.

SPEED

Up to 25 cases per minute.

TAPE SIZE

50mm or 75mm.

MACHINE FINISH

Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS

Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

Key Factors

  • Compact Footprint

    With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.

  • Ease of operation

    These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.

  • Robust construction

    High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.

  • Low Cost Of Ownership

    The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.

Watch the video

*The video shown is for illustrative purposes only and may differ according to order specification.

Summary

PRICE
BUILD QUALITY
SPEED
FOOTPRINT
MODIFIABLE
Download PDF
