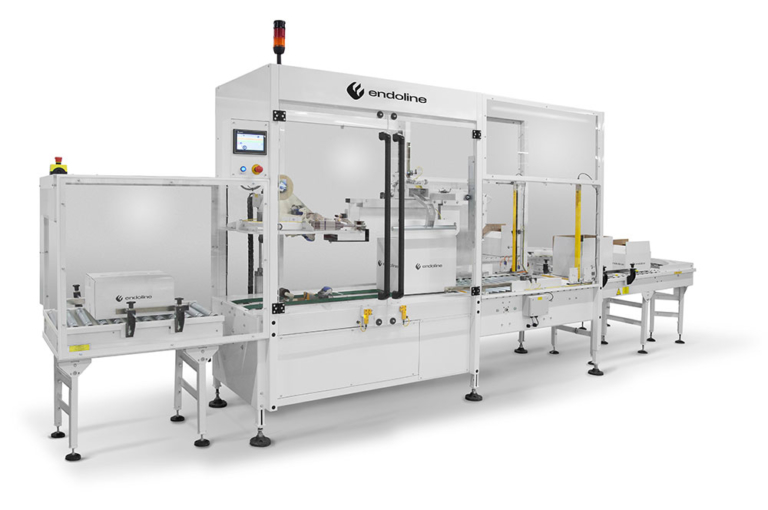

7048 FULLY AUTOMATIC RANDOM CASE SEALER

The Endoline type 7048 case sealer is a fully automatic random case taper that seals boxes with self-adhesive tape in random order and does not need an operator. It can seal small and large cases and adjusts automatically to the random sizes.

The type 7048 is very simple to operate and maintain and it has been specially designed with a unique four column construction to provide added stability to run 24 hours a day, 7 days a week with minimal down time.

CASE DIMENSIONS

 The type 7048 case sealing machines can handle cases between 200-650mm length, 200-500mm width and 110-480mm height.

SPEED

Up to 14 cases per minute dependant on case size.

TAPE SIZE

38mm, 50mm, 75mm

MACHINE FINISH

Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS

Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

Key Factors

  • Random Case Sealing

    This machine will automatically adjust its settings to close and seal cases throughout the full case size range in any random sequence. This machine can operate on small and large cases at speeds of up to 14 cases per minute.

  • Ease of operation

    These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.

  • Robust construction

    High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.

  • Low Cost Of Ownership

    The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.

Watch the video

*The video shown is for illustrative purposes only and may differ according to order specification.

Summary

PRICE
BUILD QUALITY
SPEED
FOOTPRINT
MODIFIABLE
Download PDF
