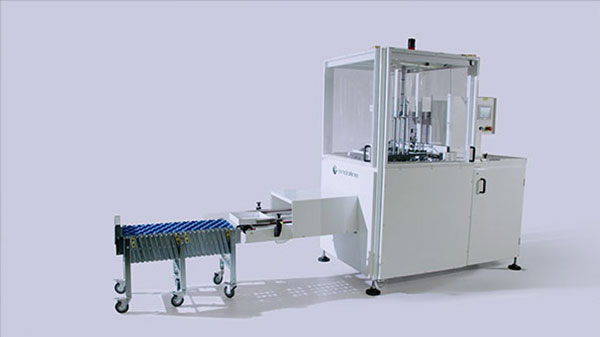

TRAY ERECTORS

Tray erectors have a number of unique features that combine to make it extremely efficient, reliable and versatile while handling a wide variety of tray sizes and styles. The tray erector is designed to be flexible enough to operate on a wide range of tray sizes and styles up to 30 per minute. The machines can hold approximately 200 ‘B’ flute blanks which can be replenished during operation, therefore keeping the machine running smoothly.

TRAY DIMENSIONS

The Tray Erector series can handle trays between 200-800mm length, 200-920mm width and 40-150mm height (open).

SPEED

Up to 30 trays per minute.

HOT MELT GLUE

 The tray erector series uses glue systems to seal the trays using hot melt glue. Endoline use Nordson Pro-Blue glue systems as standard, offering high quality and efficency. Other glue systems are available on request.

MACHINE FINISH

Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS

Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.

KEY FACTORS

  • Compact footprint

    With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.

  • Ease of operation

    These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.

  • Robust construction

    High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.

  • Low Cost Of Ownership

    The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.

DOWNLOADS

Download PDF
Case Study

OVERVIEW VIDEO

*The video shown is for illustrative purposes only and may differ according to order specification.
