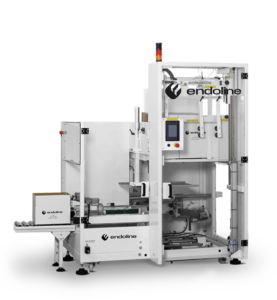

2218 Case Erector
/in Erector Glue, Tape Fully Automatic Pre-Set 200 400, 500 150, 200 300, 400 175 150, 400, 460, 500, 510, 570, 750 10, 12, 14, 18/by CBJamie

2218 – Fully Automatic Case Erector The 2218 is a fully automatic case erecting machine which is designed to handle long cases in a wide variety of styles. The machine seals the bottom flaps with self-adhesive tape and offers a small footprint providing great value for money resulting in the machine being one of Endoline’s best-selling machine. CASE DIMENSIONS The standard type 2218 case erecting machine can handle cases between 200-650mm length, 150-400mm width and 175-600mm open height. SPEED Up to 12 cases per minute as standard, high speed – up to 14 cases per minute. TAPE SIZE 50mm wide as standard. 75mm wide optional. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Dual opposing vacuum opening
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
Compact Footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
Tray Erectors
/in Erector Glue/by CBJamie

TRAY ERECTORS Tray erectors have a number of unique features that combine to make it extremely efficient, reliable and versatile while handling a wide variety of tray sizes and styles. The tray erector is designed to be flexible enough to operate on a wide range of tray sizes and styles up to 30 per minute. The machines can hold approximately 200 ‘B’ flute blanks which can be replenished during operation, therefore keeping the machine running smoothly. TRAY DIMENSIONS The Tray Erector series can handle trays between 200-800mm length, 200-920mm width and 40-150mm height (open). SPEED Up to 30 trays per minute. HOT MELT GLUE The tray erector series uses glue systems to seal the trays using hot melt glue. Endoline use Nordson Pro-Blue glue systems as standard, offering high quality and efficency. Other glue systems are available on request. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
KEY FACTORS
Compact footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Ease of operation
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
DOWNLOADS
OVERVIEW VIDEO
*The video shown is for illustrative purposes only and may differ according to order specification.
RELATED ITEMS
400 Series Fully Automatic Case Gluers
/in Sealer Glue Fully Automatic Pre-Set 200 400, 500 120, 150, 200 300, 400, 500 100 150, 400, 460, 500, 510 10, 12, 14, 18, 20, 22, 25/by CBJamie

400 SERIES FULLY AUTOMATIC CASE GLUERS The Endoline 400 series are fully automatic pre-set case sealers that seal cases with hot melt glue and do not need require an operator. It is well-suited to long production runs of the same case size and the range of machines offered include top gluing and top and bottom gluing. Endoline’s unique four column construction provides added stability and its robust chassis enables the machine to run 24 hours a day, 7 days a week with minimal down time. CASE DIMENSIONS The type 400 series case tapers can handle cases between 160-500mm length, 100-400mm width and 100-490mm height. SPEED Up to 30 cases per minute. GLUE SYSTEMS Endoline glue sealers use Nordson Pro-Blue glue systems as standard, offering high quality and efficency. Other glue systems are available on request. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Compact Footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Ease of operation
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
247/248 Case Erectors
/in Erector Glue, Tape Fully Automatic Pre-Set 150, 200 400 100, 120, 150, 200 100, 120, 150, 200, 300 150, 175 150, 400 10, 12, 14, 18, 20, 22, 25, 30/by CBJamie

247/248 – Fully Automatic High Speed Case Erector The type 247 and type 248 case erectors are designed to handle smaller cases at a high speed using servo drives. These machines use its unique dual opposing vacuum feature to erect the cases and seal on the base with self-adhesive tape (247) or hot melt glue (248). The 247/248 is designed with high quality in mind and is extremely simple to operate and maintain to offer an excellent return on investment and low cost of ownership. CASE DIMENSIONS The standard type 247 and type 248 case erecting machines can handle cases between 160-400mm length, 100-300mm width and 150-400mm height. SPEED Up to 30 cases per minute. TAPE SIZE Up to 50mm wide as standard. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Dual opposing vacuum opening
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
High Speed
The 247/248 range is fitted with servo drives to further increase the number of cases sealed per minute up to 30 cases per minute.
Servo Drives
While allowing the machine to reach higher speeds – up to 30 cases per minute – the servo drive system permits greater flexibility and control by allowing almost instant acceleration and deceleration of cases through the erecting process. In turn this system can save energy because the servo drives only use power when needed.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
100 Series Case Erectors
/in Erector Glue, Tape Semi Automatic Pre-Set, Random 200 400, 500, 600 100, 120 300, 400, 500 N/A N/A 10/by CBJamie

100 Series – Semi Automatic Case Erectors Endoline’s range of semi-automatic case erectors offer an ideal first step to packaging automation. They are designed to reduce the time and effort taken to manually erect a case, at a low capital cost. The case erector will fold the lower flaps and hold the open case steady, in place, allowing packing to take place with both hands. This will increase productivity and reduce cost. Each semi-automatic case erector can be used either on its own or close coupled to a case sealer. The semi-automatic range of machines can also be set to an angled position which is ideal for products that are unstable such as bags or bottles. This allows for ergonomic packing of these product types and the machine incorporates a section of horizontal belt drive so the case is easy to feed into the case sealer. No set up or changeover is required on the case former offering complete flexibility. The former can be close coupled to a random case sealer offering a semi-automatic random case erecting and sealing solution. CASE DIMENSIONS The semi automatic case sealer range can handle cases between 200-600mm length and 120-500mm width. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Compact footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Ease of operation
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
500 Series Tray Erectors
/in Erector Glue Fully Automatic Pre-Set 200 500, 600, 800 200 300, 400, 500, 920 50, 100, 110 150 10, 12, 14, 18, 20, 22, 25/by CBJamie

500 Series – Fully Automatic Hot Melt Glue Tray Erector The type 500 series tray erectors have a number of unique features that combine to make it extremely efficient, reliable and versatile while handling a wide variety of tray sizes and styles. The tray erector is designed to be flexible enough to operate on a wide range of tray sizes and styles up to 30 per minute. The machines can hold approximately 200 ‘B’ flute blanks which can be replenished during operation, therefore keeping the machine running smoothly. SPEED Up to 30 trays per minute. HOT MELT GLUE The 500 series uses glue systems to seal the trays using hot melt glue. Endoline use Nordson Pro-Blue glue systems as standard, offering high quality and efficency. Other glue systems are available on request. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel. TRAY DIMENSIONS The 500 series can operate on a wide range of tray styles and can handle trays between 200-800mm length, 200-920mm width and 40-150mm height (open).


BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Compact footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Ease of operation
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
225/226 Case Erectors
/in Erector Glue, Tape Fully Automatic Pre-Set 200 400, 500, 600, 800 200 300, 400, 500 175 400, 460, 500, 510, 570, 750 10, 12/by CBJamie

225/226 – Fully Automatic Case Erectors The type 225 and type 226 case erectors are designed to handle medium to large sized cases in a wide variety of styles. They seal with either self-adhesive tape (225) or hot melt glue (226), they are extremely simple to use and have the added feature of a low level hopper for the ergonomic loading of heavy case blanks. CASE DIMENSIONS The standard type 225 and type 226 machines can handle cases between 200-700mm length, 200-500mm width and 175-750mm height. SPEED Up to 10 cases per minute. TAPE SIZE Up to 50mm wide as standard. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Dual opposing vacuum opening
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
Ease of operation
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
222/224 Case Erectors
/in Erector Glue, Tape Fully Automatic Pre-Set 200 400, 500, 600 200 300, 400, 500 175, 576 400, 460, 500, 510, 570, 750 10, 12, 14/by CBJamie

222/224 – Fully Automatic Case Erectors The type 222 and type 224 case erectors have a number of unique features that combine to make it extremely efficient, reliable and versatile while handling a wide variety of case sizes and styles. These machines use a unique dual opposing vacuum feature to erect the cases and seal on the base with self-adhesive tape (222) or hot melt glue (224). The 222/224 is designed with high quality in mind and is extremely simple to operate and maintain to offer an excellent return on investment and low cost of ownership. CASE DIMENSIONS The standard type 222/224 machines can handle cases between 200-600mm length, 200-500m width and 175-600mm height. SPEED Up to 12 cases per minute as standard with a high speed option of up to 14 cases per minute. This machine can be upgraded with Servo drives to increase the speed up to 16 cases per minute. TAPE SIZE Up to 50mm wide as standard. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Dual opposing vacuum opening
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
Ease Of Operation
These machines are designed with clear access, simple controls and quick to adjust to size changes. The machines are operator friendly and allow for quick and easy size change, cleaning and maintenance to ensure minimal machine down time.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS

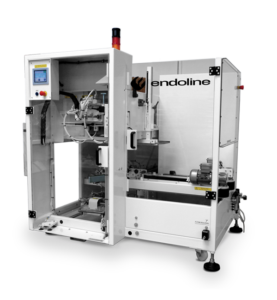

227/228 Case Erectors
/in Erector Glue, Tape Fully Automatic Pre-Set 150 200, 400 100, 110, 150, 175 300 150, 175 150, 400 10, 12, 14, 18, 20, 22/by CBJamie

227/228 – Fully Automatic Case Erector The type 227 and type 228 case erectors are designed to handle smaller cases at a high speed. These machines use a unique dual opposing vacuum feature to erect the cases and seal on the base with self-adhesive tape (227) or hot melt glue (228). The 227/228 is designed with high quality in mind and is extremely simple to operate and maintain to offer an excellent return on investment and low cost of ownership. CASE DIMENSIONS The standard type 227 and type 228 case erecting machines can handle cases between 160-400mm length, 100-300mm width and 150-400mm height. SPEED The type 227 and type 228 case erectors have the ability to run at speeds of up to 22 cases per minute. TAPE SIZE Up to 50mm wide as standard. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Dual opposing vacuum opening
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
Compact Footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
221/223 Case Erectors
/in Erector Glue, Tape Fully Automatic Pre-Set 200 400, 500 150, 200 300, 400 175 150, 400, 460, 500, 510, 570, 750 10, 12, 14, 18/by CBJamie

221/223 – Fully Automatic Case Erectors The type 221 and type 223 fully automatic case erecting machines are designed to handle average sized cases in a wide variety of styles. The machines seal with either self-adhesive tape (221) or hot melt glue (223) and are extremely simple to use. They are versatile, reliable and efficient. They also have a small footprint and offer great value for money. For all these reasons the 221/223 case erector continues to be Endoline’s best-selling machine. CASE DIMENSIONS The standard type 221 and type 223 case erecting machines can handle cases between 200-500mm length, 150-400mm width and 175-600mm height. SPEED Up to 16 cases per minute as standard, high speed – up to 18 cases per minute. This machine can be upgraded with Servo drives to increase the speed up to 22 cases per minute. TAPE SIZE Up to 50mm wide as standard. MACHINE FINISH Mild steel, powder coated white (RAL9010) or stainless steel.

BESPOKE OPTIONS
Any of Endoline’s machines can be modified or customise designed to suit your specification, if you can’t find exactly what you want then contact Endoline and a Sales Engineer will discuss your requirements with you in full.
Key Factors
Dual opposing vacuum opening
This unique design feature ensures that each case is opened positively from both sides. It ensures the efficient and reliable opening of cases, and overcomes problems that can be associated with stiff board and glue migration from the manufacturer’s joint.
Compact Footprint
With a surprisingly compact footprint these machines will fit in to areas with restricted floor space or areas not normally suited to the installation of large or bulky machinery.
Robust construction
High quality components housed in a robust chassis ensure minimal servicing and enable 24 hour operation. These systems are designed for the rigours of typical end-of-line packaging environments.
Low Cost Of Ownership
The Endoline case erector machine range is designed to give you the best possible value for your investment through maximum productivity with minimal stoppage time. All Endoline’s machines are built for 24/7 operation and require little maintenance offering a long life expectancy resulting in a low cost of ownership.
Watch the video
*The video shown is for illustrative purposes only and may differ according to order specification.
Summary
RELATED ITEMS
